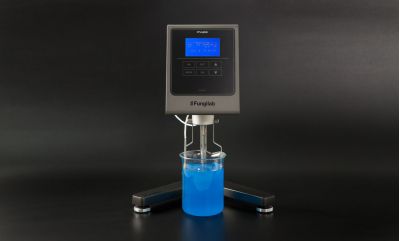

Smart Series

Essential in investigation and quality control Laboratories.

Spindles

AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350

• BS: 6075, 5350

• ISO:2555,1652

• ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Standard delivery

• The equipement is supplied complete with standard spindles

• 4 spindles for L model

• 6 spindles for R and H models

• Viscometer stand

• Spindle protector

• Temperature probe PT100

• Carring case

Technical specifications

Precision: +/- 1% full scale of range

Resolution: For a minus viscosity of 100 cP : 0.01 cP For a major viscosity of 1000 cP : 0.1 cP For a major viscosity of 5000 cP : 1.0 cP For a major viscosity of 10.000 cP : 5.0 cP For a major viscosity of 25.000 cP : 10.0 cP For a major viscosity of 50.000 cP : 25.0 cP For a major viscosity of 100.000 cP : 100.0 cP For a major viscosity of 1.000.000 cP : 1.000.0 cP

Repeatability: 0.2%

Temperature probe features: Temperature limits: -40oC to 300oC -40oF to 572oF Resolution: 0.1oC / -17.722 oF Precision: +/- 0.2oC / +/- 17.666 oF Type of probe: PT100

Supplied at 110-240VAC, 50/60 Hz.

Software: Fungilab Data Boss (optional): The Fungilab Data Boss software complies the FDA 21CFR PART 11 regulation

Accessories

APMSmall Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers

APM/BSmall Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers

LCPLow Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers

LCP/BLow Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers

HELDALHelix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)

THERMOSPHERETemperature control unit up to 300 oC

The viscosity range of the equipment is referenced between 0.01 and 100 rpm.PPRFast spindle switch (push plug and release)

The viscosity range of the equipment is referenced between 0.01 and 100 rpm.

Ranges

• (L) Low viscosity model

• (M) Medium viscosity model

• (H) High viscosity model

Low viscosity: The minimum viscosity when using a "L" range with standard spindles is 10cP. (*) For measurements<10cP, its recommended to use in conjunction with the low viscosity adaptor (LCP or LCP/B)

==========================================================

標準配置

主機、3級調平旋鈕、標準粘度轉子套件（L型4個，R型和H型6個）、轉子保護腿、轉子支架、PT100溫度探頭、含數據記錄軟件的CD、USB數據線、手提箱、電源線、校準證書、操作手冊

功能特點

>6鍵觸摸按鍵

>直觀的圖形顯示

>數據顯示

• 轉速：r.P.m

• 轉子：SP

• 粘度：cp（mPa.s）或cSt

• 滿量程的百分比：％

• 樣品溫度：℃或℉

• 剪切速度（SR）：S-l

• 剪切應力（SS）：N/m2

• 密度（需客戶輸入）：g/cm3

備注：剪切應力和剪切速率需要配套同軸轉子的時候才能顯示

>粘度測量：

• 動力粘度（cp或mPa.s)

• 運動粘度(cSt）（粘度測量之前，需要客戶提前輸入樣品密度值）

>單位換算：SI單位制轉換為CGS單位

>程序測量

• 可存儲10 個程序，便于以后快速調用；

• 可選擇TTT（到達某扭矩停止測量）和TTS（到達某時間段停止測量）測量模式。

>自檢功能：粘度計自檢功能，聲光報警提醒

>量程功能：選擇好轉子和轉速組合之后，將自動計算該組合下的最大量程（AUTO-RANGE 功能可以預測當前轉速和轉子組合下的粘度最大量程）

>通過PT100讀取溫度

>用戶自定義的粘度和溫度校準

>10種語言可選擇

>Datalogger軟件實現由USB口將實驗數據下載至電腦EXCEL軟件，并可打印輸出

技術規格

• 重復性：0.2％

• 精度：滿量程的±1％

• 粘度分辨率：

         使用LCP（低粘度適配器）：0.01CP；

         當粘度低于10000cP時：0.1cP；

         當粘度高于10000cP時：1cP

• 溫度范圍：0℃—+300℃

• 溫度分辨率：0.1℃

• 溫度精度：±0.1℃

• 溫度探頭：PT100

• 所有轉子均有AISI A316不銹鋼制成

• 電源：100一240VAC，50/60HZ

標準配置

主機、3級調平旋鈕、標準粘度轉子套件（L型4個，R型和H型6個）、轉子保護腿、轉子支架、PT100溫度探頭、含數據記錄軟件的CD、USB數據線、手提箱、電源線、校準證書、操作手冊

可選附件

小樣品量樣品適配器APM、低粘度樣品適配器LCP、高粘度樣品適配器Heldal unit、標準硅油、水浴、通用適配器、PPR快拆系統、槳葉轉子

備注：L型配備超低粘度適配器，最低粘度可以測到1mpas.R型配備超低粘度適配器最低粘度可以測到15mpas。
