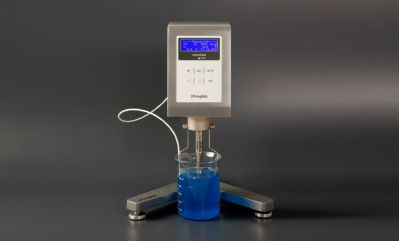

Viscolead Adv
Measuring of advanced viscosity. Easy to use. 2 years of garantee
Main Features
| Screen Data | |
|---|---|
| Selected speed | rpm |
| Selected spindle | SP |
| Viscosity reading | cP (mPa·s) or cSt |
| Percentatge of full scale | % |
| Sampling temperature | oC or oF |
| Shear Rate (with coaxial spindles) | SR (s-1) |
| Shear Stress (with coaxial spindles) | SS (N/m2) |
| Density (introduced by the user) | g/cm3 |
| Viscosity reading | |
|---|---|
| Dynamic viscosity | cP or mPa·s |
| Kinematic viscosity | cSt |
| Units Converter | from SI to CGS |
| Program features |
|---|
| Time to torque: Ending of the test upon reaching a programmed torque |
| Time to stop: Ending of the test upon reaching a programmed time |
| 10 working memories |
| Other main features |
|---|
| AUTO-TEST with visual and resonant alarm |
| AUTO-RANGE function |
| Temperature Reading through PT100 probe |
| User-enabled viscosity and temperature calibration |
| 10 language options |
| Port: USB |
| Software Datalogger: USB lets tranfer data to an Excel file in the PC |
Spindles
AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350
BS: 6075, 5350
ISO:2555,1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
Standard delivery
The equipement is supplied complete with standard spindles
4 spindles for L model
6 spindles for R and H models
Viscometer stand
Spindle protector
Temperature probe PT100
Carring case
USB cable
Datalogger software
Technical specifications
Precision: +/- 1% full scale of range
Resolution: For a minus viscosity of 10.000 cP : 0.1 cP For a major viscosity of 10.000 cP : 1 cP With the low viscosity adapter (LCP-LCP/B) : 0.01cP
Repeatability: 0.2%
Temperature probe features: Temperature limits: -10oC to 150oC 14oF to 302oF Resolution: 0.1oC / -17.722 oF Precision: +/- 0.2oC / +/- 17.666 oF Type of probe: PT100
Supplied at 110-240VAC, 50/60 Hz.
Accessories
APMSmall Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers
APM/BSmall Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers
LCPLow Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers
LCP/BLow Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers
HELDALHelix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)
THERMOSPHERETemperature control unit up to 300 oC
| Code | Model | Measuring Range (cP) | Speed (r.p.m) | Number of speeds |
|---|---|---|---|---|
| VL210003 | ADV L | *1 - 2.000.000 | 0.3 - 100 | 18 |
| VL210002 | ADV R | 100 - 13.000.000 | 0.3 - 100 | 18 |
| VL210001 | ADV H | 200 - 106.000.000 | 0.3 - 100 | 18 |
The viscosity range of the equipment is referenced between 0.01 and 100 rpm.
PPRFast spindle switch (push plug and release)
| Code | Model | Measuring Range (cP) | Speed (r.p.m) | Number of speeds |
|---|---|---|---|---|
| VL211003* | ADV L + PPR | *1 - 2.000.000 | 0.3 - 100 | 18 |
| VL211002* | ADV R + PPR | 25 - 13.000.000 | 0.3 - 100 | 18 |
| VL211001* | ADV H + PPR | 200 - 106.000.000 | 0.3 - 100 | 18 |
The viscosity range of the equipment is referenced between 0.01 and 100 rpm.
Ranges
(L) Low viscosity model
(M) Medium viscosity model
(H) High viscosity model
Low viscosity: The minimum viscosity when using a "L" range with standard spindles is 10 cP* For measurements < 10cP, its recommended to use in conunction with the low viscosity adapter (LCP or LCP/B)
============================================================
標準配置
主機、3級調平旋鈕、標準粘度轉子套件（L型4個，R型和H型6個）、轉子保護腿、轉子支架、PT100溫度探頭、含數據記錄軟件的CD、USB數據線、手提箱、電源線、校準證書、操作手冊
功能特點
>數據顯示：
轉速 ： r.P.m
粘度 ： cp（ mPa.s）或cSt
樣品溫度：℃或℉
剪切應力（ SS）：N/m2
轉子：SP
滿量程的百分比 ：％
剪切速度（ SR ）：S-1
密度（ 需 客 戶 輸 入）：g/cm3
備注：剪切應力和剪切速率需要配套同軸轉子的時候才能顯示
>粘度測量：動力粘度（cP或mPa·s)運動粘度（cSt）（粘度測量之前，需要客戶提前輸入樣品密度值）
>單位換算：SI單位制轉換為CGS單位
>程序測量：可存儲10個程序，便于以后快速調用；
可選擇TTT（到達某扭矩停止測量）和TTS（到達某時間段停止測量）測量模式
>自檢功能：粘度計自檢功能，聲光報警提醒
>量程功能：選擇好轉子和轉速組合之后，將自動計算該組合下的最大量程（AUTO-RANGE 功能可以預測當前轉速和轉子組合下的粘度最大量程）
>通過PTI00讀取溫度
>用戶自定義的粘度和溫度校準
>10種語言可選擇
>Datalogger軟件實現由USB口將實驗數據下載至電腦EXCEL軟件，并可打印輸出
技術規格
·重復性：0.2％
·精度：滿量程的±1％
·粘度分辨率：
使用LCP（低粘度適配器）：0.01CP,
當粘度低于10000cP時：0.1cp
當粘度高于10000cP時：1cP
·溫度范圍：0℃—+100℃
·溫度分辨率：0.1℃
·溫度精度：±0.1℃
·溫度探頭：PT100
·所有轉子均有AISI A316不銹鋼制成
·電源：100一240VAC，50/60HZ
標準配置
主機、3級調平旋鈕、標準粘度轉子套件（L型4個，R型和H型6個）、轉子保護腿、轉子支架、PT100溫度探頭、含數據記錄軟件的CD、USB數據線、手提箱、電源線、校準證書、操作手冊
可選附件
小樣品量樣品適配器APM、低粘度樣品適配器LCP、高粘度樣品適配器Heldal unit、標準硅油、水浴、通用適配器、PPR快拆系統
貨號 | 型號 | 測量范圍（cP） | 速度（r.p.m） | 檔數 |
VL200003 | Viscolead Adv L | 20-2,000,000 | 0.3-100 | 18 |
VL200002 | Viscolead Adv R | 100-13,000,000 | 0.3-100 | 18 |
VL200001 | Viscolead Adv H | 200-106,000,000 | 0.3-100 | 18 |
